NextMAG Rugged
The NextMAG Rugged is a high-performance, hardened magnetometer engineered specifically for continuous, unattended deployment in demanding industrial environments.
Built around Nextage’s science-grade three-axis magneto-inductive sensor suite and an integrated Raspberry Pi single-board computer, this ruggedized system brings research-quality geomagnetic monitoring and anomaly detection to the field at a fraction of the cost of traditional, high-maintenance equipment.
Key Features & Industrial Capabilities:
- Science-Grade Precision: Delivers a 4 pT/√Hz noise floor with an active measurement
range of ±1100 µT and custom temperature-calibrated data stability. - Ruggedized Construction: Features a wide operating temperature range (−40°C to
+85°C), enhanced EMI considerations, and a rugged-rated PWR/IO connector designed
for harsh, real-world deployment. - Integrated Sensor Suite: Features an on-board concurrent GNSS/GPS module for
precise time-stamping (20 ns RMS), a 6-axis IMU for orientation and tracking, and a high-
precision temperature sensor for real-time thermal compensation. - Industrial Connectivity & Cloud Integration: Operates on the headless NextMAG
Rugged OS and seamlessly integrates with the Nextage online data platform for real-time
B-field upload and data visualization via a user-friendly, web-based Data Explorer. - Flexible Sampling: Fully configurable sampling rates (from 0.075 Hz to 600 Hz) with
support for Continuous Measurement Mode (CMM) to suit your custom operational
workflows.

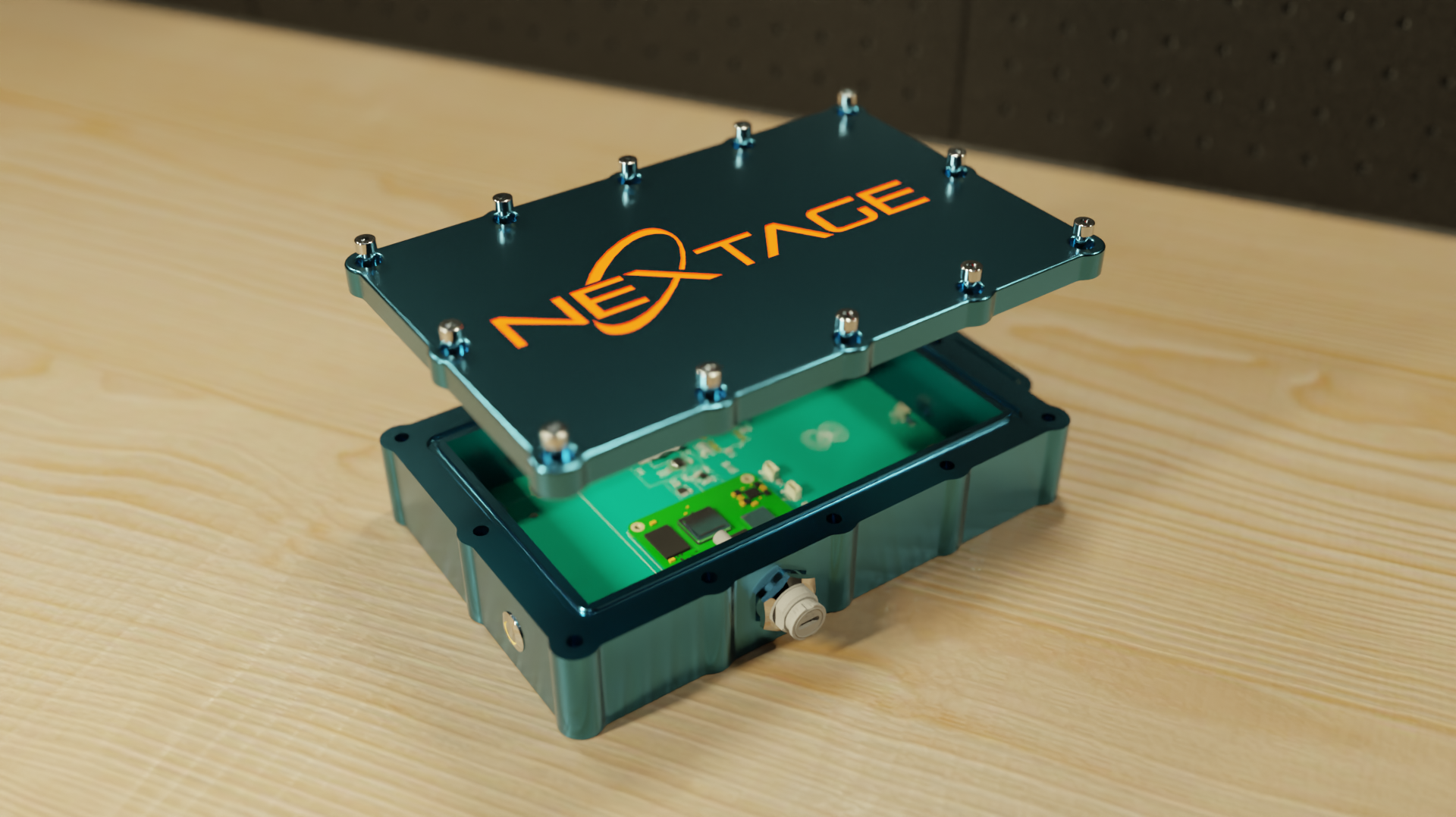

Photo does not represent final product and may change based on user requirements.
Target Industrial Applications:
- Infrastructure & Power: Subsurface pipeline inspection, power grid monitoring, and
structural magnetic anomaly detection (MAD). - Energy & Surveying: Oil and gas exploration surveys, subsurface mapping, and
archaeological magnetometry. - Navigation & Autonomous Systems: Ground truth calibration for compasses,
UAV/autonomous vehicle heading references, and inertial navigation aid. - Environmental Monitoring: Seismic precursor tracking, volcanic activity observation,
and real-time space weather or solar storm monitoring.
Be Among the First to Bring NASA-Grade Science to Your Project or Research
Interested in NextMAG Rugged for your project?
Sign up now to:
- Hear more about our design capabilities
- Explore the possibilities of the NextMAG
- Stay informed about availability, pricing, and resources
