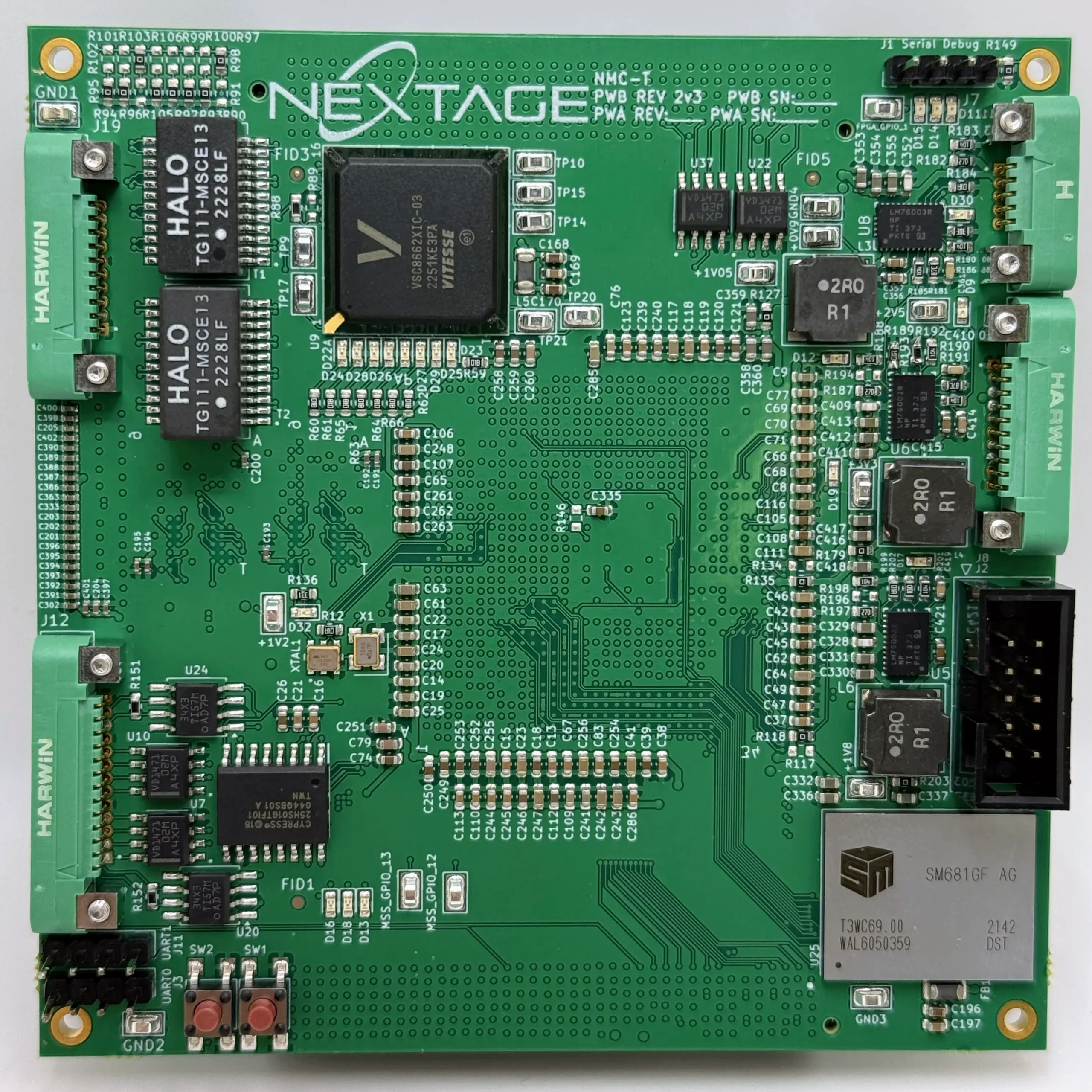

NMC - Nextage Modular Computer
NMC Features and Specifications

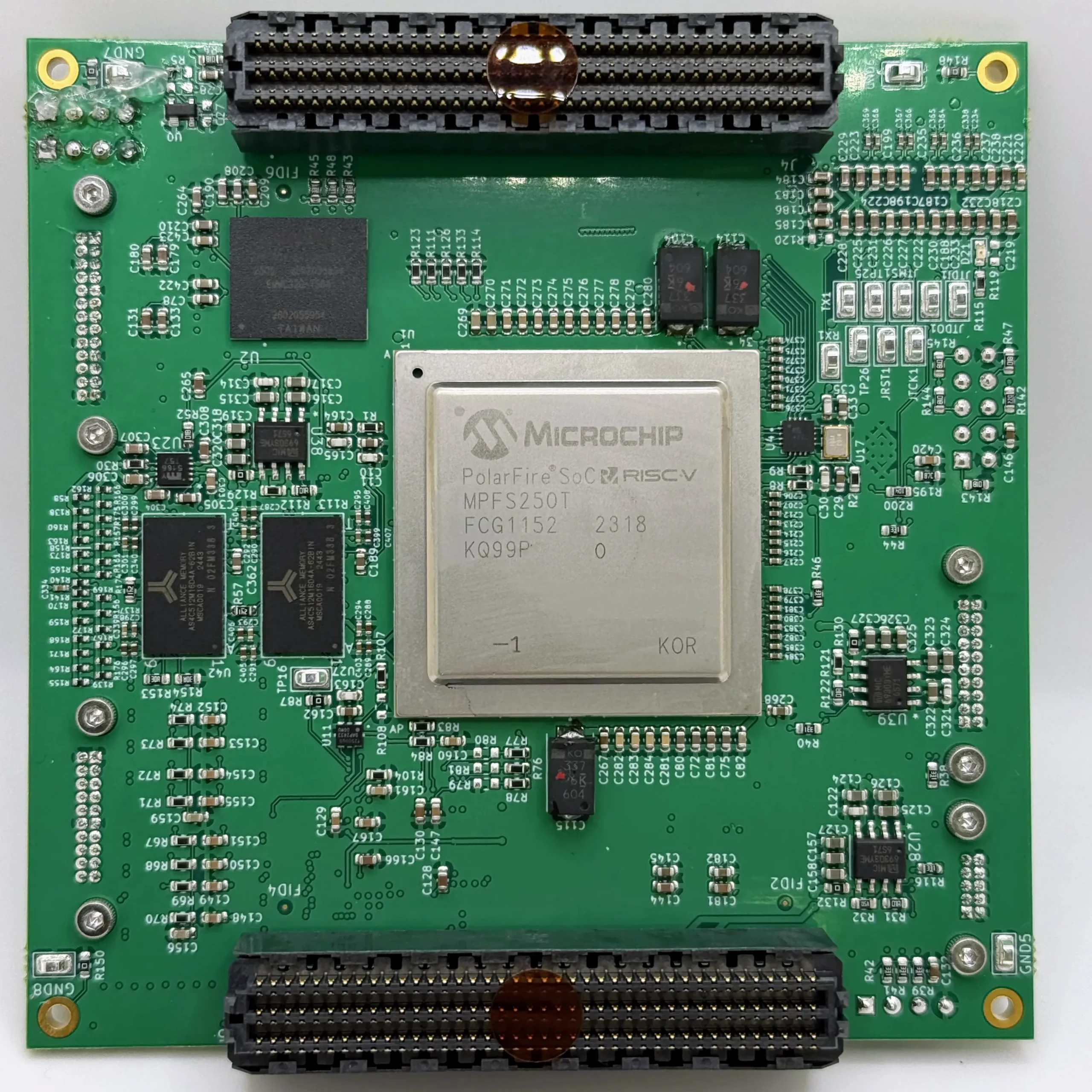

Microchip RT PolarFire® SoC FPGA:
Advanced, Radiation tolerant (30-100 KRAD), Low-Power, Reconfigurable
- SWaP optimized 1U CubeSat (96mm x 96mm) form factor
- Stacking connectors allow modularity and ease assembly
- Expandable I/O using Nextage designed or customer specified interface cards
- Multicore capable for added processing and efficiency
- TriCortex Incremental in situ compiling
- Versatility and processing power of RISC V
- Substantial logic resources with up to 461 KLUTs
- Myriad of use cases supported with up to 468 GPIO
- Two standard EIA-422 transceivers
- Dynamic programmable clocking reduces power SERDES I/F
- 1Gbit HS DDR4 with ECC
- 500 Mb High-Speed SSD chip
- 3.3V GPIO 800 Mbit/s
- 1.8V High-Speed IO 1600 Mbit/s
- High-Speed SERDES 10.3 GHz
- Integrated dual PCIe Gen2 End Points
- ECC DDR4
- 2 Ch 1 Gbit Ethernet Ports
Power
- Input Voltage: 5 Vdc
- Typical Power Consumption: 1 - 3 W (dependent upon FPGA usage)
- 1V, 3.3V and 1.8V Dedicated Switching Power Regulators
Dimensions
- LxWxH: 96mm x 96mm x 28mm
- Weighs less than 90 grams
Interface Cards
Combo Board
- 8 Digital I/O w/ programmable voltage levels
- 8 Half-bridge motor drive circuits
- 16 Analog Inputs
- 4 Channel LVDS
- 4 Thermocouple circuits
- Programmable GND and VREF for ADC
- On board GPS, IMU, and Magnetometer
Motor Driver Board
- 48 Half-bridge circuits to drive:
- 16x Three-phase motors or 24x stepper motors
Custom Interface boards available upon request.
